Pumping units

Pumping units are used to pump drilling fluids to the drill rig during a horizontal or vertical drilling. Our units are built to pump bentonite based liquids, grout and other drilling fluids. Our range of pumping units varies in capacity of 10 up to 3500 liters per minute and up to 150 bar. We have built the first pumping unit 20 years ago and we have continued to improve these units ever since. We learn from our customers and incorporate their user experience in our design. We have optimized our range of pumping units to the highest standards available.

Check our standard units below. Contact us for more information.

P500DH

P500D 1
P500D 2
P500D 2 1
P500D

500 ltr/min @ 50 bar | 4000 x 1450 x 2250 mm (LxWxH) | 4100 kg

P1000D

P1000d2
P1000D
P1000D 1

1000 ltr/min @ 50 bar | 5000 x 2300 x 2400 mm (LxWxH) | 8500 kg

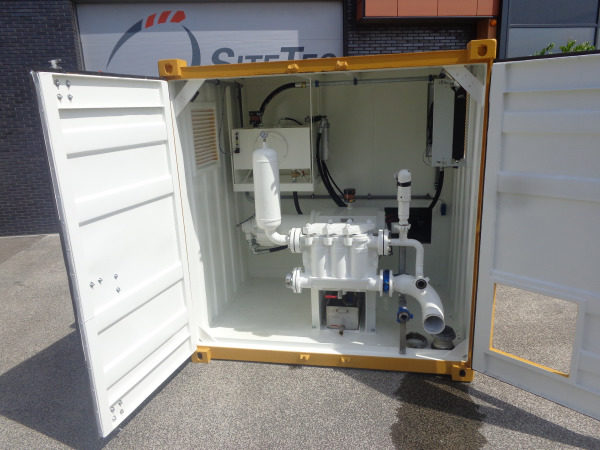

P1000DH

P1000DH 1
P1000DH 2
P1000DH

1000 ltr/min @ 50 bar | 3000 x 2300 x 2400 mm (LxWxH) | 6500 kg

P1500D

BCF4A27F 9E8B 49AD 948D CE32A88333A8
P1500E

1500 ltr/min @ 70 bar | 5230 x 2350 x 2560 mm (LxWxH) | 8500 kg

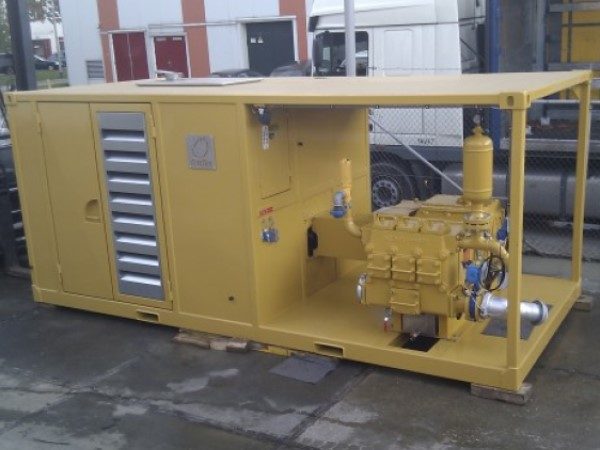

P1500E

IMG 2455
IMG 2454
IMG 2456

1500 ltr/min @ 70 bar | 3230 x 2350 x 2560 mm (LxWxH) | 8500 kg

P2500D

DSCN7397
foto
P2500D 1
p2500d
SiteTec HDD Mud High Pressure pump P2500D 2
SiteTec HDD Mud High Pressure pump P2500D

2500 ltr/min @ 100 bar | 6000 x 2440 x 2600 mm (LxWxH) | 14000 kg

P2500E

P2502 1
P2502 2
P2502

2500 ltr/min @ 100 bar | 6000 x 2440 x 2600 mm (LxWxH) | 14000 kg

We have a wide range of high pressure pump units. All units are easy to operate and easily accessible for maintenance. Our small footprint units are logistically highly efficient. They can be equipped with different brands of pumps and engines. We can build them in open frames, fully sound attenuated frames or standard ISO containers. The units are either fully hydraulic, electrically driven or equipped with a stage V diesel engine. Any customer’s choice of RAL-color is possible. Other requirements or wishes of customers and operators can be adjusted in all units. CE certification of conformity and manual are included.
