Recycling units

Recycling units are used to recycle used drilling fluids. This process enables you to reuse drilling fluids during horizontal or vertical drilling projects. When working with drilling fluids it is regulatory economically and ecologically interesting to recycle on the jobsite. Therefore, in the 20 years of our existence, we have improved and mastered our recycling units. Our range of recycling units varies in capacity of 250 up to 4000 liters per minute. We learn from our customers and incorporate their user experience in our design. We have optimized our range of recycling units to the highest standards available.

Check our standard units below. Contact us for more information.

R300E compact

300 ltr/min | 2440 x 1750 x 2440 mm (LxWxH) | 2500 kg

R500E compact

500 ltr/min | 2500 x 2500 x 2300 mm (LxWxH) | 3830 kg

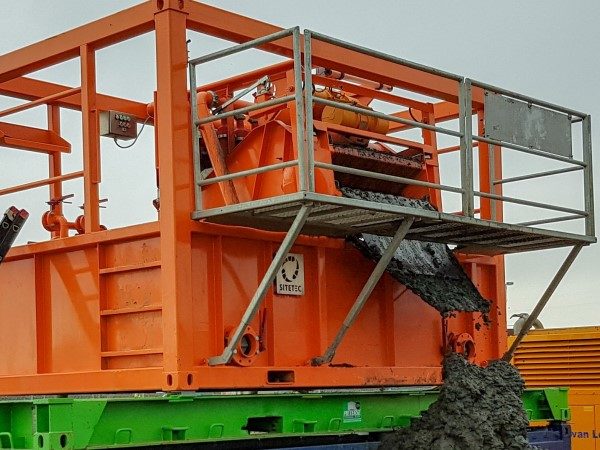

R1000E compact

1000 ltr/min | 4000 x 2450 x 2600 mm (LxWxH) | 7200 kg

R2000E compact

2000 ltr/min | 6000 x 2450 x 2580 mm (LxWxH) | 9800 kg

R2500E

2500 ltr/min | 6000 x 2440 x 2600 mm (LxWxH) | 9800 kg

R3000E

3000 ltr/min | 7500 x 2440 x 2600 mm (LxWxH) | 9800 kg

We have a wide range of recycling units. They differ in sizes and capacity, but the field proven capacity regarding removal of solids is always the same. With a maximum of 20% incoming solids and less than 1% going out @ 60 sec viscosity 1.2 gr/cc spec. gravity. Depending on the size of the project, soil conditions and flow demand that there is a unit available which suits the job.

All units are easy to operate and easily accessible for maintenance. Our small footprint units are logistically highly efficient. It is a system of hydro-cyclones, shakers and screens, collectively referred to as solids removal equipment. This separates solids out of the fluid. It recirculates reusable fluids, consisting of bentonite, water and other additives, back into the active fluid system: this is a closed loop. The units are fully electrically driven. Any customer’s choice of RAL-color is possible. Other requirements or wishes of customers and operators can be adjusted in all units. CE certification of conformity and manual are included.
