Rental Units
Check out SiteTec’s complete rental fleet below. With our rental equipment we support various projects. When all your units are in use, we are happy to support you with our equipment! You recognize our rental fleet by the orange SiteTec color. Contact us for more information.

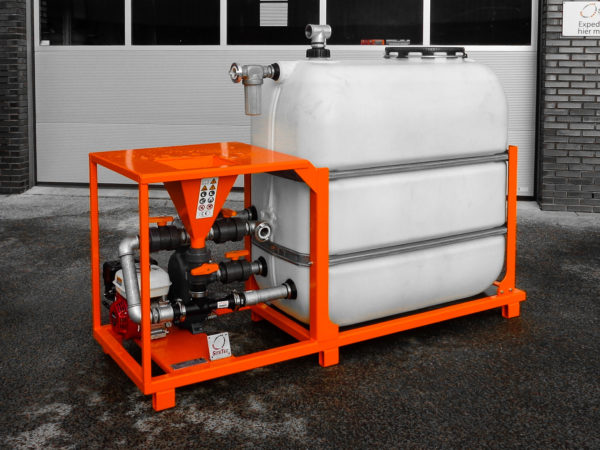

Mixing unit | M125B
Dimensions: 2200 x 750 x 1650 mm (LxWxH)
Weight: 260 kg
Capacity: 125 ltr/min
Tank: 1100 ltr PE tank with manhole
Drive: Honda GX 160 Petrol
Pump: Gorman Rupp Self Priming
Agitation: Venturi and in-tank nozzle system
Mixing unit | M250D
Dimensions: 3900 x 1000 x 2300 mm (LxWxH)
Weight: 900 kg
Capacity: 250 ltr/min
Tank: 3000 ltr PE tank with manhole
Drive: 1D81 1-cylinder Hatz Diesel engine
Pump: Gorman Rupp 82H52
Agitation: Venturi and in-tank nozzle system
Mixing unit | M500D
Dimensions: 2300 x 2450 x 2350 mm (LxWxH)
Weight: 1750 kg
Capacity: 650 ltr/min
Tank: 5000 ltr PE tank
Drive: Hatz Silentpack diesel
Pump: Mudmax with hard iron mechanical seal
Agitation: Venturi and in-tank nozzle system

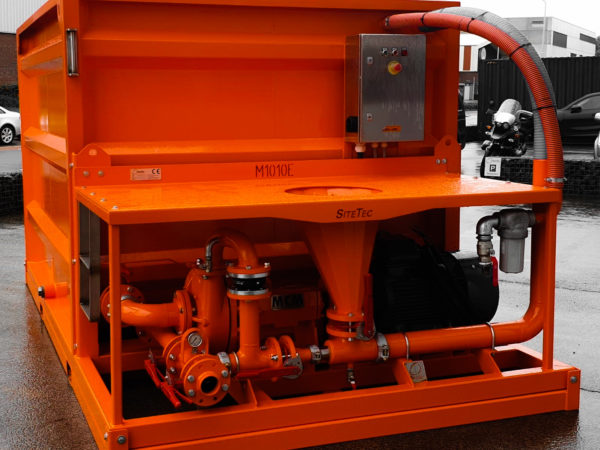

Mixing unit | M1010E
Dimensions: 2300 x 2450 x 2350 mm (LxWxH)
Weight: 2250 kg
Capacity: 1000 ltr/min
Tank: 8000 ltr
Drive: 30kW electrical motor
Pump: Mudmax with hard iron mechanical seal
Agitation: Venturi and in-tank nozzle system
Mixing unit | M1500E
Dimensions: 6220 x 2440 x 2650 mm (LxWxH)
Weight: 5000 kg
Capacity: 1500 ltr/min
Tank: 24000 ltr
Drive: 45kW electrical motor
Pump: MCM with hard iron mechanical seal
Agitation: Venturi and in-tank nozzle system
Mixing unit | M2000E
Dimensions: 6220 x 2400 x 2650 mm (LxWxH)
Weight: 6500 kg
Capacity: 2000 ltr/min
Tank: 24000 ltr
Drive: 55 kW electrical motor
Pump: MCM circulation pump with hard iron mechanical seal
Agitation: Venturi and in-tank nozzle system
Pumping unit | P500DH
Dimensions: 4000 x 1450 x 2250 mm (LxWxH)
Weight: 4100 kg
Capacity: 500 ltr/min @ 50 bar
Drive: Iveco 6 cil
Pump: FMC M12
Controls: Stainless steel control box on the unit 50 mtr remote control cable with remote control box
Pumping unit | P1400D
Dimensions: 5000 x 2300 x 2400 mm (LxWxH)
Weight: 8500 kg
Capacity: 1400 ltr/min @ 50 bar
Drive: John Deere Diesel engine
Pump: Gardner Denver THE
Controls: Stainless steel control box on the unit remote control c/w 50 meter cable

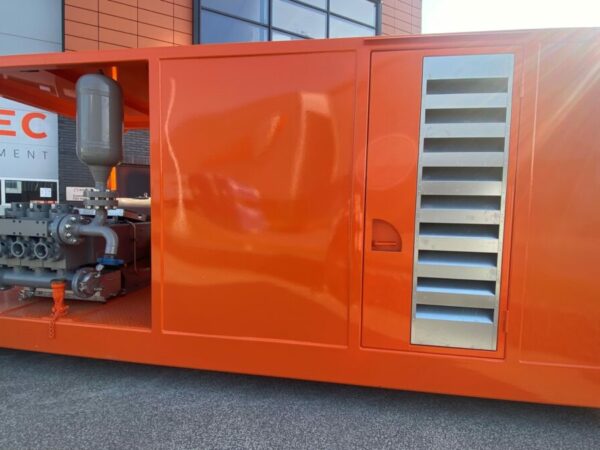

Pumping unit | P2500D
Dimensions: 6000 x 2440 x 2600 mm (LxWxH)
Weight: 14000 kg
Capacity: 2500 ltr/min @ 70 bar
Drive: Caterpillar 3408
Pump: Ellis Williams 446
Controls: Stainless steel main control box on the unit remote control
Pumping unit | P2500E
Dimensions: 6000 x 2440 x 2600 mm (LxWxH)
Weight: 14000 kg
Capacity: 2500 ltr/min @ 70 bar
Drive: Electric 3355 kW motor
Pump: Ellis Williams 446
Controls: Stainless steel main control box on the unit remote control
Slurry pump | PS3E
Dimensions: 1000 x 1000 x 1400 mm (LxWxH)
Weight: 175 kg including skid
Capacity: 600 ltr/min
Drive: 4kW complete with Nolta plug
Controls: supplied with electric cable 20 mtr H07RN-F 4Cx2,5mm2 | NOLTA connector
Compatible: R500E
Slurry pump | PS4E
Dimensions: 1000 x 1000 x 1400 mm (LxWxH)
Weight: 300 kg
Capacity : 1400 ltr/min
Drive: 7kW complete with Nolta plug
Controls: supplied with electric cable 20 mtr H07RN-F 4Cx2,5mm² | NOLTA connector
Compatible: R1000E
Slurry pump | PS6E
Dimensions: 1130 x 630 x 1200 mm (LxWxH)
Weight: 300 kg
Capacity : 3000 ltr/min
Drive: 7kW complete with Nolta plug
Controls: supplied with electric cable 20 mtr H07RN-F 4Cx2,5mm² | NOLTA connector
Compatible: R2000E
Slurry pump | PS4D
Dimensions: 2200 x 1000 x 1000 mm (LxWxH)
Weight: 1200 kg
Capacity : 100 m3 / hour @ 0,5 bar or 20 m3 / hour @ 2 bar
Drive: Hatz Silent pack Diesel
Controls: Engine power box with engine safety shut down
Compatible: R1000E
Transfer pump | PM4E
Dimensions: 2100 x 800 x 1500 mm (LxWxH)
Weight: 550 kg
Capacity: 125 m³/ hour
Drive: 22 kW (63A 5-pole connection)
Pump: Mudmax centrifugal pump
Controls: Stainless steel main control box on the unit
Transfer pump | PM6E
Dimensions: 2100 x 800 x 1500 mm (LxWxH)
Weight: 600 kg
Capacity: 220 m³/ hour
Drive: 37 kW Electric motor
Pump: Mudmax with Hard Iron mechanical Seal
Controls: Stainless steel main control box on the unit
Recycling unit | R250E
Dimensions: 2250 x 1600 x 2000 mm (LxWxH)
Weight: 1380 kg
Capacity: 250 ltr/min, max 20% solids 1% out @60 sec viscosity 1.2 gr/cc spec. gravity
Drive: 16 kW electric motor
Pump: 1x circulation pump
Tank: Total volume circulation tank 0,5 m3
Recycling unit | R500E
Dimensions: 2500 x 2500 x 2300 mm (LxWxH)
Weight: 3830 kg
Capacity: 500 ltr/min, max 20% solids 1% out @60 sec viscosity 1.2 gr/cc spec. gravity
Drive: 30 kW electric motor
Pump: Amteq circulation pump and Tsurumi transfer pump
Tank: Total volume circulation tank 1,5 m3
Recycling unit | R1000E
Dimensions: 4000 x 2450 x 2600 mm (LxWxH)
Weight: 7200 kg
Capacity: 1000 ltr/min, max 20% solids 1% out @60 sec viscosity 1.2 gr/cc spec. gravity
Drive: 45 kW electric motor
Pump: Mudmax with Hard Iron mechanical Seal Tsurumi transfer pump
Tank: Total volume circulation tank 4,3 m³
Recycling unit | R2000E
Dimensions: 6600 x 2440 x 2600 mm (LxWxH)
Weight: 12500 kg
Capacity: 2000 ltr/min, max 20% solids 1% out @60 sec viscosity 1.2 gr/cc spec. gravity
Drive: 2x 45kW electric motor
Pump: 2x MCM circulation pump
Tank: Total volume circulation tank 5,5 m3
Shale shaker
Dimensions: 3300 x 2440 x 1500 mm (LxWxH)
Weight: 1500 kg
Capacity: 3000 ltr/min
Connections: 6” Perrot
Screens: Standard screens 48”x 36” mesh 24
Storage unit | ST1500E
Dimensions: 6000 x 2400 x 1500 mm (LxWxH)
Weight: 500 kg
Tank: Storage tank volume ± 15 m3
Drive: 45 kW electric motor
Pump: 1x MCM circulation pump
Agitation: In-tank nozzle system
Controls: Stainless steel main control box mounted on the unit
Storage unit | ST2000E
Dimensions: 6000 x 2400 x 2000 mm (LxWxH)
Weight: 5.500 kg
Tank: Storage tank volume 20 m³
Drive: 45 kW electric motor
Pump: 1x MCM circulation pump
Agitation: In tank nozzle system
Controls: Stainless steel main control box mounted on the unit
Pipe rollers | STR500
Max. pipe diameter: 500 mm
Dimensions: 510 x 450 x 230 mm
Weight: 20 kg
Max. Load capacity: 1000 kg
Others: Adjustable rollers, stackable
Pipe roller | STR800
Max. pipe diameter: 800 mm
Dimensions: 1210 x 600 x 570 mm
Weight: 215 kg
Max. Load capacity: 5 ton
Others: Adjustable rollers, stackable
Pipe roller | STBR
Max. bundle diameter: 900 mm
Dimensions (closed): 900 x 1030 x 115 mm
Dimensions (open): 900 x 1030 x 890 mm
Weight: 95 kg
Others: Stackable
Silo
Dimensions: 2600 x 1600 x 2650 mm (LxWxH)
Weight: 900 kg
Driven: Hydraulic
Feautures: Forklift pockets
Fits a big bag Bentonite
BreakOut Unit | SBR600
Dimensions: 890 x 910 x 580 mm (LxWxH)
Weight: 177 kg
Makeup torque capacity: 20,000 ftlbs with Controlled Torque
Breakout torque capacity: 30,000 ftlbs with Controlled Rotation
Machine Diameter Ranges:
1” to 3”(Reducers)
3″ to 10”(Links)
Roller slings
RS for pipe diameters 160 – 300mm
3 rollers
Max. load 2000 kg
L2000mm
RS for pipe diameters 300 – 600mm
5 rollers
Max. load 2000 kg
L3000mm
RS for pipe diameters 600 – 900mm
7 rollers
Max. load 2000 kg
L3000mm

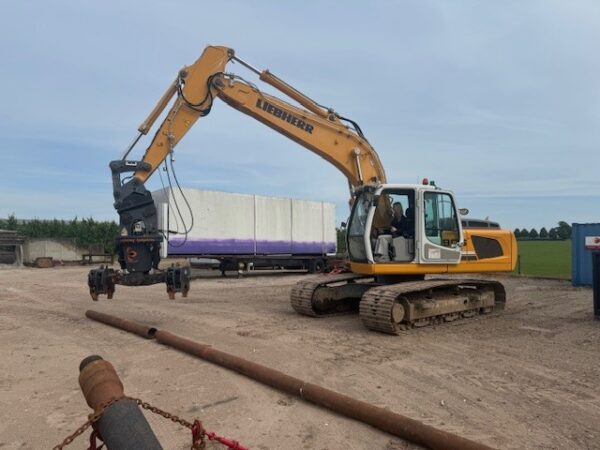

LaValley | Deckhand
Dimensions: 2540 x 1190 x 2460 mm (LxWxH)
Weight: 1315 kg
Excavator Wt Class: 20-36 ton
Supply Pressure: 207 bar
Standard Recommended Flow: 95 ltr / min
Capacity: 13,608 kg
Arms: Directional Drill Arms
LaValley | DHLT
Dimensions: 2135 x 940 x 1370 mm (LxWxH)
Weight: 969 kg
Excavator Wt Class: 16-25 ton
Supply Pressure: 207 bar
Standard Recommended Flow: 95 ltr / min
Capacity: 4,536 kg
Arms: Directional Drilling LT Arms
LaValley | Tonghand
Dimensions: 2540 x 1520 x 2570 mm (LxWxH)
Weight: 4128 kg
Excavator Wt Class: 30-36 ton
Supply Pressure: 345 bar
Standard Recommended Flow: 132 ltr / min
Capacity: 7,258 kg
Multi lift adaptor
For 20Ft iso container
